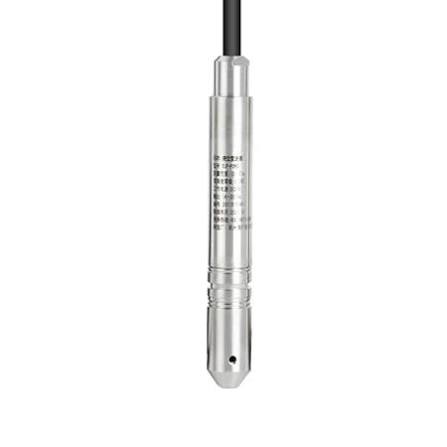

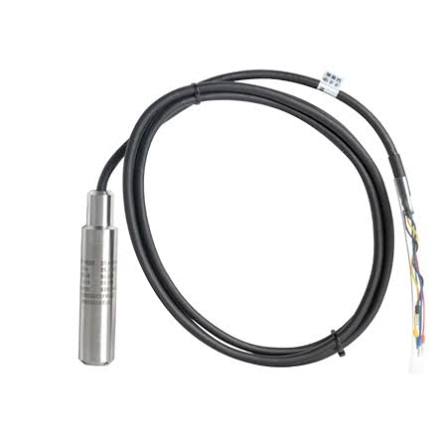

Submersible Level Transmitter – SUP-P260

Submersible Level Transmitter – SUP-P260

A robust submersible hydrostatic level transmitter designed for continuous liquid level measurement in wells, tanks, rivers, and reservoirs. Built with a 316SS diaphragm and IP68-rated probe for reliable performance in harsh environments.

• Output and Power Supply: Two-wire 4–20mA
• Accuracy: Level 0.5
• Diaphragm Material: 316SS
• Probe Material and Protection Level: 304SS, IP68
• Cable Length: 5m
• Cable Sheath Material: Polyvinyl Chloride (PVC)

Available Measurement Ranges:

• 0–5m (Model: P260-05KA1M3105N9)
• 0–10m (Model: P260-10KA1M3105N9)
• 0–20m (Model: P260-20KA1M3105N9)
• 0–50m (Model: P260-50KA1M3105N9)
• 0–100m (Model: P260-1HKA1M3105N9)
• 0–10m M2 Type (Model: P260-M2-10KA1M3105N9)

Ideal for groundwater monitoring, flood control, water supply systems, and industrial tank level measurement.
