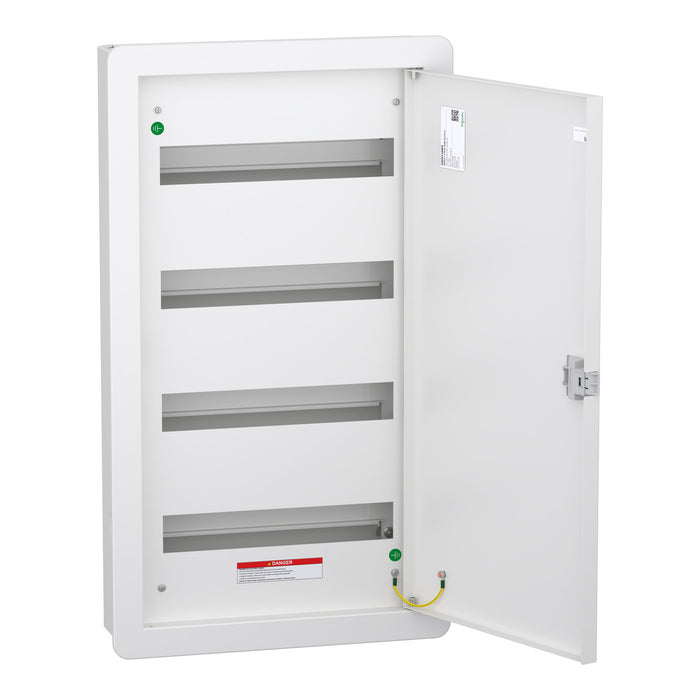

Schneider Electric DBSeT DBR416MF 100 A 4-Row 64-Module Flush Mount Distribution Board (DBR416MF)

The Schneider Electric DBSeT DBR416MF is a high-capacity flush-mount low-voltage distribution board designed for structured electrical circuit distribution in commercial and residential applications. This model supports up to 64 × 18 mm modular devices across 4 rows, offering extensive space for MCBs, RCBOs, isolators, and other modular protection devices.

Constructed with a painted sheet-steel enclosure (1.2 mm thick) in clean white (RAL 9003), the DBR416MF delivers reliable mechanical strength and a professional finish. The plain flush door design integrates seamlessly into interior walls, reducing visual impact while providing secure protection for internal components.

The distribution board features a 100 A incoming busbar rating with a 500 V AC insulation voltage suitable for typical low-voltage networks (240–415 V, 50/60 Hz). It includes DIN rails and identification labels to support easy installation and cable management.

Key Technical Features:

• Model: DBR416MF – 64-way low-voltage distribution board (flush mount).

• Capacity: 64 modules (4 rows × 16 modules per row) for flexible circuit segregation.

• Rated Current: 100 A incoming busbar.

• Rated Voltage: 240–415 V AC, 50/60 Hz.

• Insulation Voltage: 500 V AC.

• Enclosure: Painted sheet steel, 1.2 mm, white (RAL 9003) with DIN rails and identification label.

• Mounting: Flush mount, designed to be recessed into walls or cabinets.

• Protection Ratings: IP41, IK08 offering basic ingress and impact resistance per IEC standards.

• Compliance: Conforms with IEC 61439-1 and IEC 61439-3 distribution board standards.

• Application: Suitable for electrical distribution in offices, commercial buildings, residential developments, and utility rooms.

This flush-mount distribution board frame is supplied without MCBs (protection devices) to allow customer selection of breakers according to specific load requirements and circuit design.
