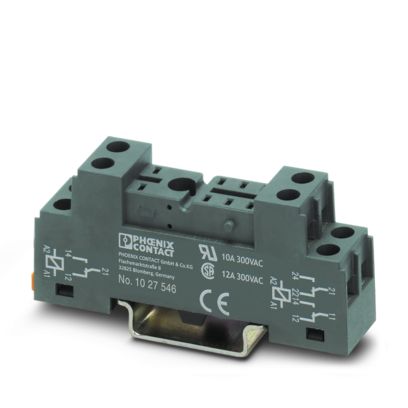

ECOR-1-BSC2-RT/2X21 – Relay Base for 2-Pole Industrial Relays | Phoenix Contact (Part No. 1027546)
ECOR-1-BSC2-RT/2X21 – Relay Base for 2-Pole Industrial Relays | Phoenix Contact (Part No. 1027546)
Product Overview:
The Phoenix Contact ECOR-1-BSC2-RT/2X21 is a high-quality relay base designed for mounting 2-pole relays in control panels and automation systems. This relay socket simplifies relay installation and replacement, ensuring reliable connectivity and quick maintenance. It features a standardized RT socket layout, making it compatible with a variety of Phoenix Contact relays in the ECOR series.
Built for use in DIN rail-mounted control systems, it supports 2X21-type relays and includes mechanical retention for vibration resistance and secure fit.
< data-start="759" data-end="762">Key Features:
-
✅ Relay Base for 2-Pole Relays – Compatible with 2X21 relay pin layouts
-
✅ DIN Rail Mountable – Fast and reliable snap-in installation
-
✅ Reliable Electrical Contact – Ensures secure connection with relay pins
-
✅ Vibration-Resistant Locking – Retains relays firmly in place in high-vibration environments
-
✅ Compact Form Factor – Space-efficient design for dense panel installations
-
✅ Industrial-Grade Durability – Engineered for long service life in harsh environments
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Phoenix Contact |
| Model | ECOR-1-BSC2-RT/2X21 |
| Part Number | 1027546 |
| Function | Relay base/socket |
| Relay Compatibility | 2-pole relays (2X21 series) |
| Mounting Type | DIN rail |
| Rated Voltage | According to relay used |
| Rated Current | According to relay used |
| Locking Mechanism | Mechanical retention for relay |
| Material | Industrial-grade thermoplastic |
| Standards Compliance | RoHS, CE, IEC compliant |
Applications:
-
Industrial relay switching systems
-
Machine control panels
-
Building automation circuits
-
Signal interfacing and control
-
Quick-connect relay mounting in field service environments
